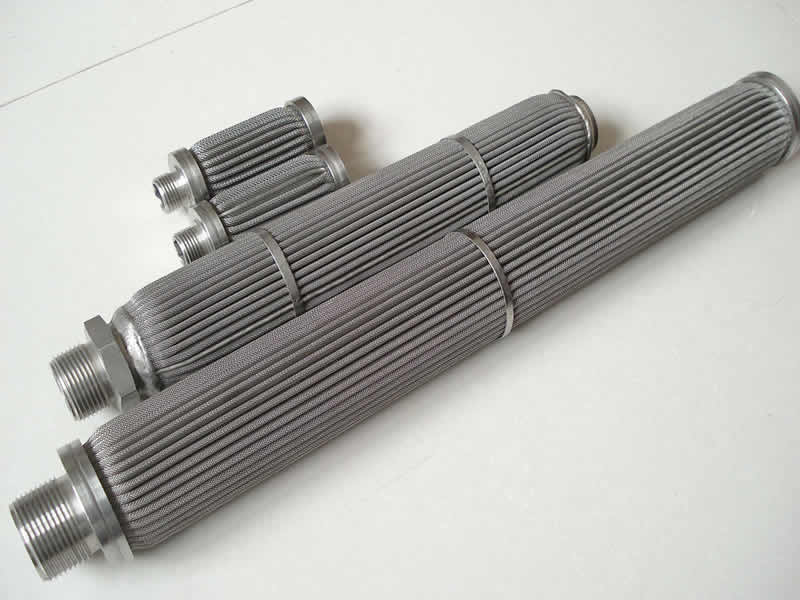

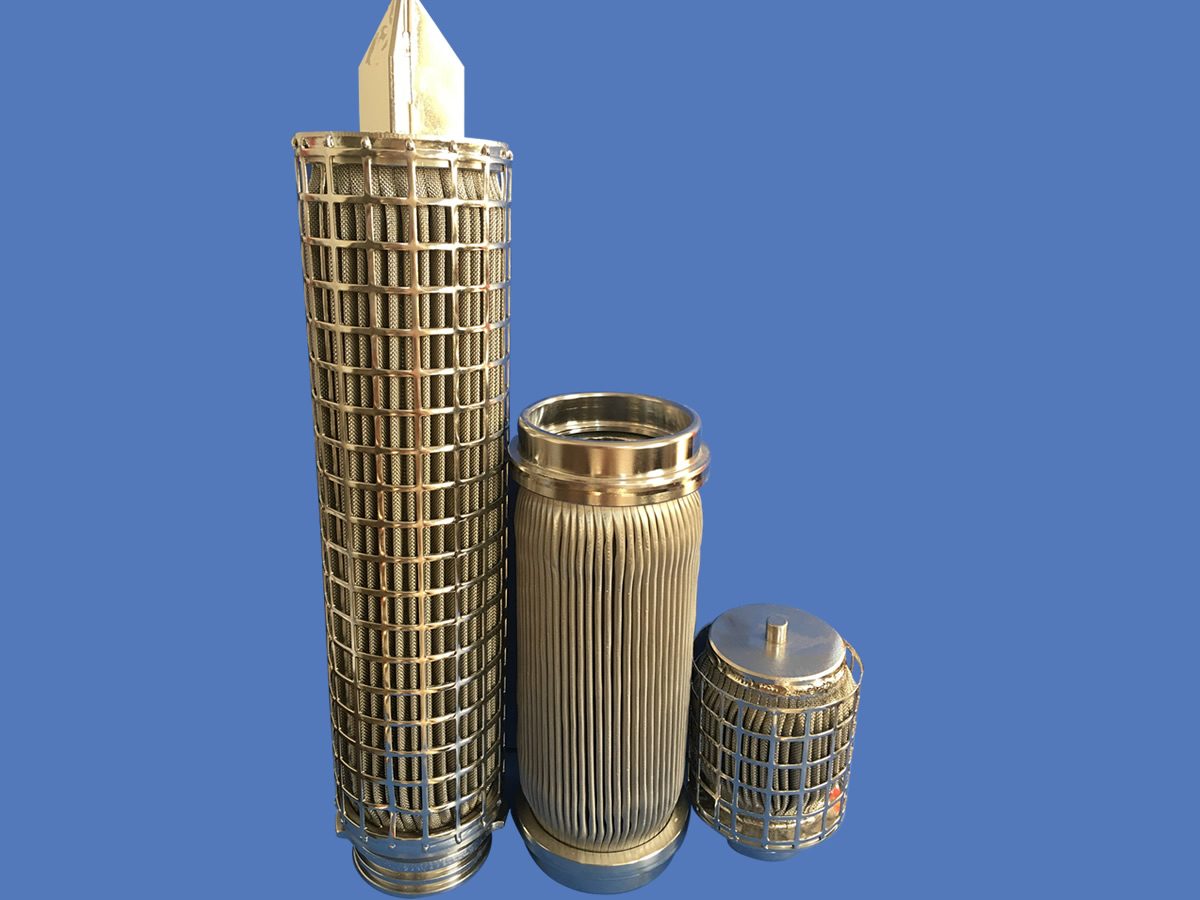

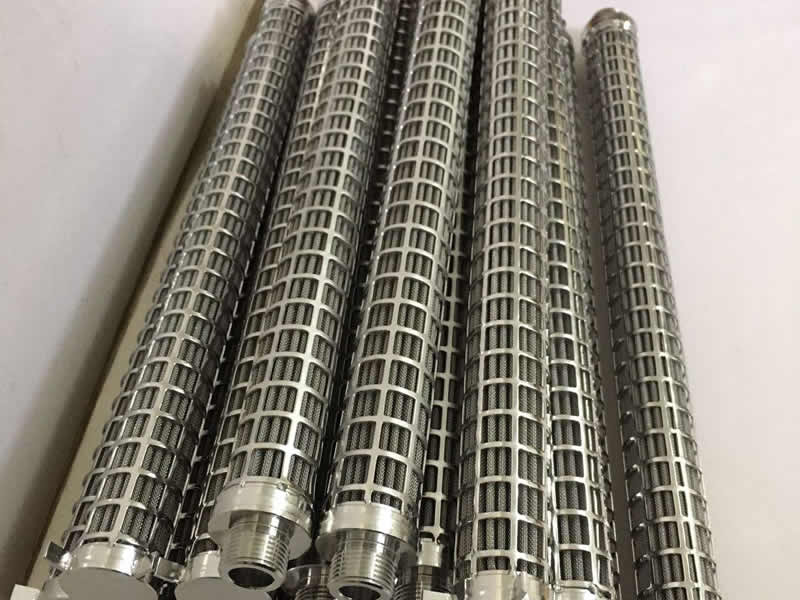

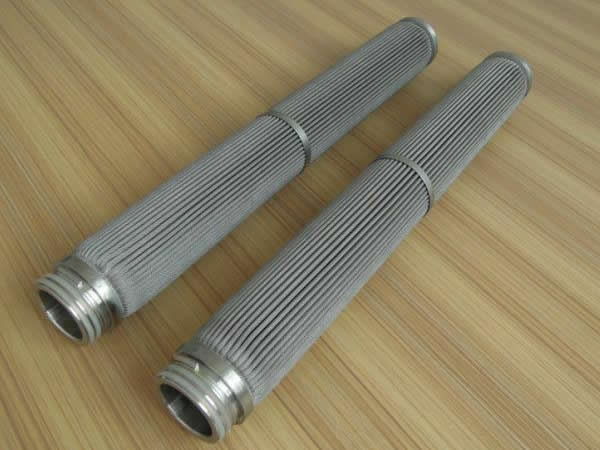

Filter media for Multi-layer Pleated Filter Elements are stainless steel sintered fiber web and stainless steel weaving screen wire cloth.
Payments:This supplier also supports L/C,T/T,Western Union,MoneyGram payments.
Directiens of filter element model：PF-D/L-R
D - Outside diameter
L - Length
R - Filteration rating
The main filter media includes S.S. Sintered Fibre Web and S.S. Wire Woven Cloth,S.S. Sintered Fibre Web is the products of Bckaert Fibre Teachnologies (Belgium).
Advantages：
High dirt hilding capacity.
Low pressure drop due to high porosity.
Accurate filrtration rating,high reliable standard specifications.
Easily cleanable by conventional chemical cleaning and ultrasonic etc.
and with a long life-span.
Filter area increased by pleating
Available filtration rating (μm): 3, 5、7、10、15、20、25、30、40、60.
Any outline size available according to customer' s requirement.
Technical Index of Stainless Steel Sintered Fiber Wed
| Absolute Filter-Rating(μm) | Bubble point Pressure (Pa) | Average Air Permeability (1/dm2/min) | Thickness(mm) | Weight(g/m2) | Porosity(%) | Dirt Holding Capacity (mg/cm2) |
| 3 | 12300 | 9 | 0.35 | 975 | 65 | 6.40 |
| 5 | 7600 | 34 | 0.34 | 600 | 78 | 5.47 |
| 7 | 5045 | 57 | 0.27 | 600 | 72 | 6.47 |
| 10 | 3700 | 100 | 0.32 | 600 | 77 | 7.56 |
| 15 | 2470 | 175 | 0.37 | 600 | 80 | 7.92 |
| 20 | 1850 | 255 | 0.49 | 750 | 81 | 12.44 |
| 25 | 1480 | 320 | 0.61 | 1050 | 79 | 19.38 |
| 30 | 1235 | 455 | 0.63 | 1050 | 79 | 23.07 |
| 40 | 925 | 580 | 0.66 | 1200 | 77 | 25.96 |
| 60 | 630 | 1000 | 0.70 | 750 | 87 | 33.97 |
Remarks:
Above data povided accrding to Bekipor AL3 series fiber web
Bubble Point Pressure [Pa] determined according to ISO4003
Average Air permeability determined according to ISO4033 Air pressure at 200Pa
Dirt Holding Capacity determined according to ISO4572 Differential Pressure=8*initial differential pressure.
